EzWay DAB Western Blot Kit

Catalog Number	K03350
Size	10A
Type	Kit
Datasheet

Specification

Specific and accurate colorimetric protein detection using DAB
Optimized all reagents supplied for quick and convenient western blot assay
Affinity purified secondary antibodies included for versatility (rabbit & mouse)
High sensitivity and clear background
Easy to use

Protocol

Transfer >> Rinsing >> Blocking >> Washing >> Reacting with primary antibody >> Washing >> Reacting with secondary antibody >> Washing >> Color reaction

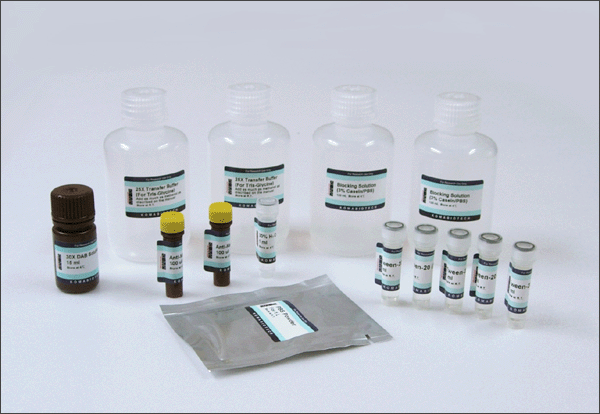

Kit Contents

Items	Quantity
25X Transfer Buffer (Tris-Glycine)**	100ml x 2
6X Blocking Solution (3% Casein/PBS)	120ml x 2
PBS Powder	Pouch for 1L x 5
Tween-20 (50%)	1ml (50%) x 5
30X DAB Solution	15ml
Substrate solution (30% H2O2)	1ml
Secondary antibody (goat anti-mouse IgG-HRP)/*	0.1ml
Secondary antibody (goat anti-rabbit IgG-HRP)/*	0.1ml

* The dilution rate of secondary antibodies for WB is 1:1,000-1:10,000. They are also applicable to use for ELISA (1:10,000-1:100,000) as well as IHC (1:200-1:500).
** For separate purchasing, this small volume is not available.

Western Blot

Immunoblot Analysis Marker (lane 1), 10 ug (lane 2), 1 ug (lane 3), 0.1 ug (lane 4), 0.01 ug (lane 5) of BSA samples were resolved by lectrophoresis, blotted to nitrocellulose, and probed with Anti-BSA (1:4,000). Proteins were visualized with at anti-rabbit secondary antibody conjugated to HRP (1:5,000) and DAB substrate. Arrow indicates BSA (69 kDa).

Dot Blot

10 ug (lane 1), 1 ug (lane 2), 0.1 ug (lane 3), 0.01 ug (lane 4), 0.001 ug (lane 5) of BSA samples were dotted to nitrocellulose, and probed with Anti-BSA (1:4,000). Proteins were visualized with goat anti-rabbit secondary antibody conjugated to HRP (1:5,000) and DAB substrate.
