EzCell Electrophoresis System

Catalog Number	K0890
Size	SET
Type	Apparatus & Accessories
Datasheet	Inquire

Description

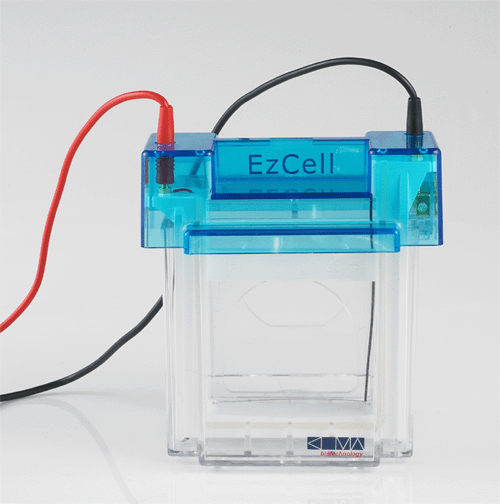

EzCell Electrophoresis system is used for vertical electrophoresis of one or two mini precast or handcast gels at a time. It provides fast, convenient method to seal gel/buffer core assembly in position using wedge system instead of clamps or screws only in 10 seconds.
It is manufactured with tough polycarbonate, so it is not damaged by common laboratory reagent such as alcohol. The transfer of proteins or DNA from a gel to a membrane can be done with the optional EzBlot, in the same chamber.

Set up to Run : only 10 seconds
Easy to Set up with Wedge System
No clamps, No screws
Low Buffer Volume required
Tough Polycarbonate : Resistance to alcohol
1 or 2 mini gels running at a time

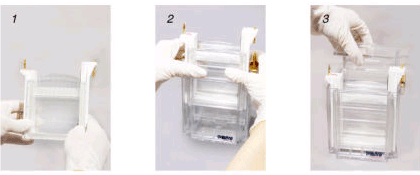

How to Use

Specification

Gel Capacity: Up to 2 mini gels
Cell Dimensions: (W)14cm x (H)15cm x (D)13cm
Upper Buffer Requirement: 200ml
Lower Buffer Requirement: 150-600ml
Material: Polycarbonate
Chemical Resistance: It is not damaged by alcohol.
Gel Cassette: 10cm x 10cm
Thickness: 1.0mm or 1.5mm
